Core

Foundation

Foundation is the permanent core of wire-core. It provides shared traits, base classes, icons, colors, and Blade components used by all other modules and packages.

Foundation is the permanent core of wire-core. It provides shared traits, base classes, icons, colors, and Blade components used by all other modules and packages.

Concerns (Traits)

Component Configuration

State & Behavior

Infrastructure

Action-specific

Button/badge CSS classes come from the canonical HasColor resolvers (see Canonical color resolvers), not from a per-component map. HasButtonStyles remains only as a deprecated alias.

Closure Evaluation

All configuration methods accept both scalar values and Closures:

// Scalar
TextColumn::make('name')->label('Full Name');

// Closure — evaluated per record at render time
TextColumn::make('name')->label(fn (User $record) => "Name: {$record->name}");

// Closure with dependency injection
Action::make('edit')->hidden(fn (User $record, Table $table) => ! $table->isEditable());

Base Classes

// All components use the static factory pattern
$field = TextInput::make('email');
$column = TextColumn::make('name');
$action = Action::make('delete');

Icons

The complete Heroicons solid collection (324 icons, 20x20 viewBox) is bundled inline — no external dependencies, no extra package. It is the default set, addressed with bare names (pencil, user). You can register any number of additional sets (Lucide, Feather, your own brand icons) alongside it — see Using multiple icon sets.

Each icon carries its own viewBox and fill/stroke styling, so 20×20 fill-based Heroicons and 24×24 stroke-based sets render correctly side by side.

Blade Usage

<x-wire::icon name="check" class="w-5 h-5" />
<x-wire::icon name="trash" class="w-4 h-4 text-red-500" />

{{-- A prefixed icon from another registered set --}}
<x-wire::icon name="lucide:home" class="w-5 h-5" />

{{-- Expose to assistive tech (otherwise the icon is aria-hidden) --}}
<x-wire::icon name="trash" label="Delete" />

PHP Usage

use NyonCode\WireCore\Foundation\Icons\IconManager;

$manager = app(IconManager::class);

$manager->render('check');                 // full <svg> string
$manager->render('trash', 'w-5 h-5', 'text-red-500', label: 'Delete');
$manager->has('lucide:home');              // bool
$manager->resolve('check');                // ?ResolvedIcon (body + viewBox + attrs)
$manager->allNames();                      // every available name (prefixed for non-default sets)

render() is the canonical entry point — it applies each icon's own viewBox and styling. getPath() returns just the inner markup and is kept only for callers that wrap their own <svg> (correct only for 0 0 20 20 fill icons).

Available Icons

Every default icon uses its canonical Heroicons name — the file name from heroicons.com (solid variant). Browse the full set there; a few examples:

academic-cap, arrow-down-tray, bars-3, chevron-up, cog-6-tooth, document-text, envelope, funnel, magnifying-glass, pencil, qr-code, trash, user, wrench-screwdriver, x-mark.

For IDE autocompletion you can reference icons through the Icon enum instead of raw strings:

use NyonCode\WireCore\Foundation\Icons\Icon;

Action::make('edit')->icon(Icon::pencilSquare);

Wire-friendly Aliases

A small set of short aliases map onto canonical icons for convenience:

Accessibility

Icons render as decorative by default (aria-hidden="true"). Pass a label when the icon carries meaning on its own — it is then exposed as an image with that label (role="img" + aria-label):

<x-wire::icon name="check-circle" label="Verified" />

Adding Custom Icons

You don't have to settle for the bundled set. Pick whichever approach fits. Custom icons (folders and inline) are bare-named and take priority over the default set, so a custom icon is used anywhere a name is accepted (->icon('logo'), <x-wire::icon name="logo" />, …).

When you paste a complete <svg>…</svg>, its viewBox and styling attributes (fill, stroke, stroke-width, …) are preserved — so you can drop in icons from any source and format. A bare <path> fragment defaults to the Heroicons solid format (0 0 20 20, fill="currentColor").

1. From a folder of SVG files (easiest)

Drop .svg files in a directory and register the path — the file name becomes the icon name (logo.svg → logo). No class, no boilerplate.

Via config (config/wire-core.php), great for app-wide icons. A string key adds a dash-joined name prefix and avoids file-name collisions between folders:

'icons' => [
    'paths' => [
        resource_path('icons'),                 // resources/icons/logo.svg => "logo"
        'brand' => resource_path('icons/brand'), // icons/brand/mark.svg   => "brand-mark"
    ],
],

Or at runtime:

use NyonCode\WireCore\Foundation\Icons\IconManager;

app(IconManager::class)->registerIconsFromDirectory(
    resource_path('icons/brand'),
    prefix: 'brand',                   // brand/logo.svg => "brand-logo"
);

The folder prefix produces a flat name (brand-logo) — it is not the same as the prefix:name set namespace described below.

2. Inline, by name

Register individual icons — paste a full <svg>…</svg> (the wrapper is stripped, its viewBox/styling preserved) or just the inner <path>:

app(IconManager::class)->registerIcons([
    'logo'  => '<svg viewBox="0 0 20 20"><path d="M10 2 …"/></svg>',
    'spark' => '<path d="M10 1 12 8 …"/>',
]);

Reuse the same name as a bundled icon to override it. Put the call in a service provider's boot() so the icons are available everywhere:

public function boot(): void
{
    app(IconManager::class)->registerIconsFromDirectory(resource_path('icons'));
}

3. A reusable icon set (advanced)

For a complete, swappable style, implement IconSet. Implement the optional ProvidesIconMetadata capability too if your icons are stroke-based or use a non-20x20 viewBox (Lucide, Feather, Heroicons outline) — that lets each icon carry its own ResolvedIcon (body + viewBox + attributes):

use NyonCode\WireCore\Foundation\Icons\{IconSet, ProvidesIconMetadata, ResolvedIcon};

final class LucideIconSet implements IconSet, ProvidesIconMetadata
{
    private string $dir = '/abs/path/to/node_modules/lucide-static/icons';

    public function getIcon(string $name): ?ResolvedIcon
    {
        $file = "{$this->dir}/{$name}.svg";

        // fromSvg() keeps Lucide's viewBox="0 0 24 24" + fill=none stroke=currentColor.
        return is_file($file) ? ResolvedIcon::fromSvg(file_get_contents($file)) : null;
    }

    public function getPath(string $name): ?string { return $this->getIcon($name)?->body; }
    public function has(string $name): bool        { return is_file("{$this->dir}/{$name}.svg"); }
    public function names(): array                 { /* basenames of *.svg */ return []; }
}

Sets that implement only IconSet still work — their getPath() output is wrapped in the default 0 0 20 20 fill format.

Using multiple icon sets

Resolution is deterministic and namespaced:

• The default set is unprefixed — pencil, user, lucide aliases, custom icons — and is always Heroicons unless you swap it (below).
• Every other set requires a unique prefix and is addressed as prefix:name.

Register additional sets in config under their prefix key:

// config/wire-core.php
'icons' => [
    'default_set' => 'default',
    'sets' => [
        'default' => DefaultIconSet::class,   // → "pencil"      (Heroicons, 20×20 fill)
        'lucide'  => LucideIconSet::class,    // → "lucide:home" (24×24 stroke)
        'custom'  => App\Wire\Icons\MyIconSet::class,
    ],
],

<x-wire::icon name="pencil" />        {{-- Heroicons --}}
<x-wire::icon name="lucide:home" />   {{-- Lucide --}}

This guarantees the sets never collide: a bare name is always the default set, a prefixed name is always that exact set. Because of this, registering a non-default set without a prefix throws an InvalidArgumentException:

app(IconManager::class)->registerIconSet(new LucideIconSet, 'lucide'); // ok
app(IconManager::class)->registerIconSet(new LucideIconSet);           // throws

The separator is a colon (:). Icon names themselves use dashes (arrow-down-tray), so there is no ambiguity. Use default:name to address the base set explicitly.

Swapping the default (unprefixed) set

To make a different set the unprefixed base — e.g. ship Lucide as your primary style — point default_set at its key:

'icons' => [
    'default_set' => 'lucide',            // bare names now resolve against Lucide
    'sets' => [
        'lucide'  => LucideIconSet::class,
        'default' => DefaultIconSet::class, // still available as "default:pencil"
    ],
],

At runtime: app(IconManager::class)->setDefaultIconSet(new LucideIconSet).

Catching typos

Set icons.warn_missing (or WIRE_ICONS_WARN_MISSING=true) to log a warning whenever an unknown icon name is rendered — it still renders the fallback placeholder, but the log helps surface typos in development.

Regenerating the bundled Heroicons

The bundled paths live in the generated PHP data file packages/core/resources/icons/heroicons-solid.php, produced from the official heroicons npm package (20/solid SVGs, keyed by file name). Regenerate that file rather than editing icon paths by hand.

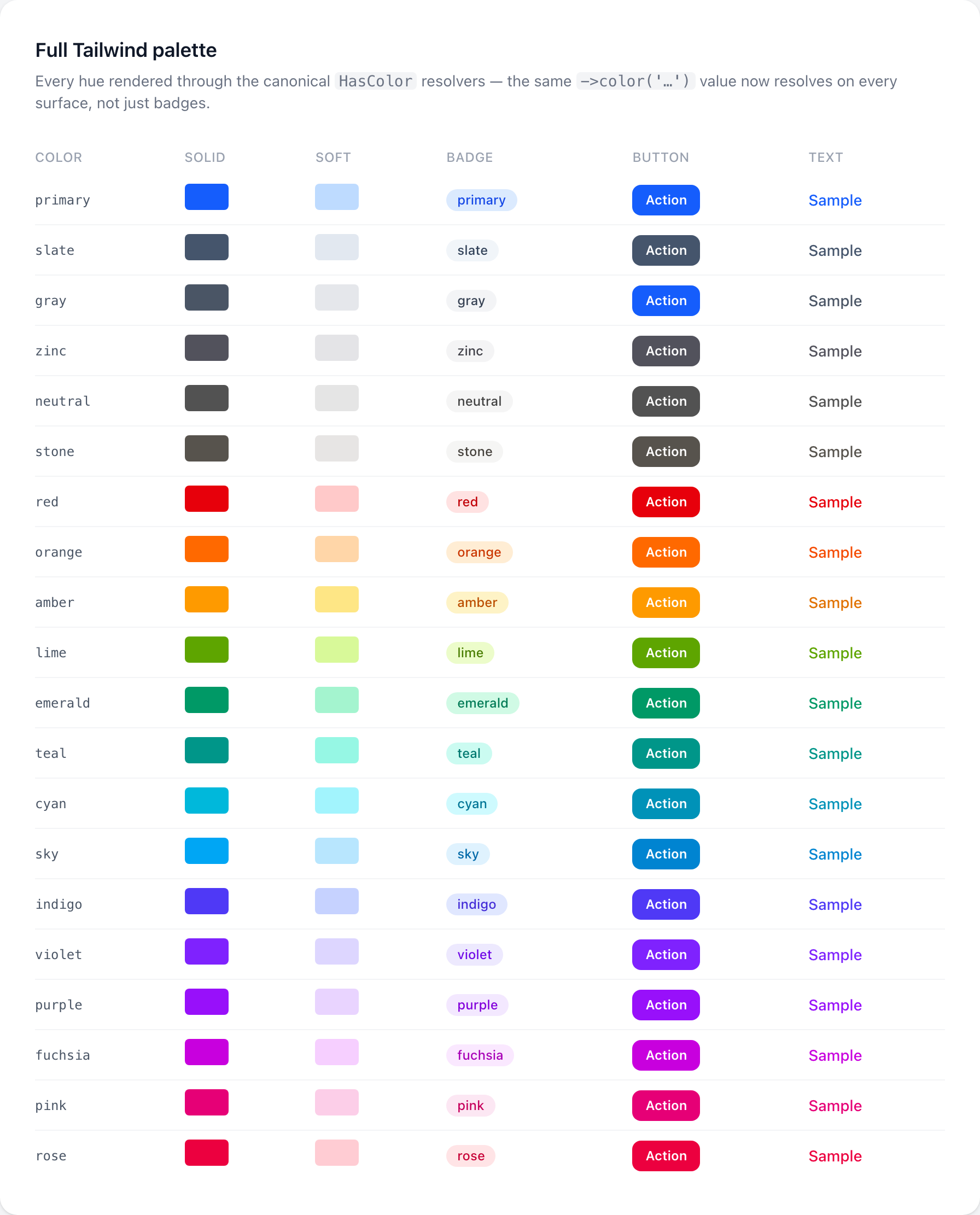

Colors

->color() accepts the complete Tailwind palette on every surface. Two vocabularies resolve through the same canonical map:

Semantic roles — fixed brand hues that carry meaning:

Raw hue families — every Tailwind color, for finer control:

blue, green, red, yellow, cyan, slate, zinc, neutral, stone, orange, lime, teal, sky, indigo, violet, purple, fuchsia, pink, rose.

Literal hues are not aliases. blue, green and yellow are their own literal Tailwind hues — blue is distinct from the re-themeable brand primary, green from success/emerald, and yellow from warning/amber. red and cyan render the same hue as danger/info but stay available by name.

Achromatic endpoints — white and black. Tailwind has no numeric white/black scale, so these resolve adaptively: black is a dark ink/fill in light mode and flips to white in dark mode, white is the inverse — so they stay readable on both themes.

Action::make('delete')->color('danger');   // semantic role
Action::make('archive')->color('teal');     // raw hue
BadgeColumn::make('status')->colors([
    'active' => 'success',
    'pending' => 'warning',
    'inactive' => 'danger',
]);

The type-safe Foundation\Colors\Color enum has a case for every one of these (Color::Danger, Color::Teal, …). Each color resolves to Tailwind utility classes for bg, text, border, ring, and hover variants — the same value renders identically on a badge, a solid/outlined/link button, a modal, a choice card, and a chart bar.

Canonical color resolvers (HasColor)

Foundation\Concerns\HasColor is the single source of truth for color → Tailwind class mapping. Every surface delegates to it instead of re-encoding match maps, so a semantic color resolves to the same hue everywhere (success → emerald, info → cyan, primary → your brand accent), while literal hues like blue, green and yellow and the adaptive white/black endpoints resolve to themselves.

When adding a color or surface, extend the resolver here once — downstream columns, badges, actions, and toggles pick it up automatically. Keep utility names compatible with the lowest supported Tailwind version (see ADR 0005); use only standard hue names, never version-specific ones.

Canonical sizing & typography resolvers

Sibling single-source resolvers, used the same way as HasColor — extend once, every surface picks it up, and class strings stay literal for Tailwind's JIT scanner.

Type-safe value enums

Every fluent setter that takes a string token also accepts a canonical enum from Foundation\Enums\ — ->size('lg') and ->size(Size::Lg) are interchangeable, and the string form stays fully supported. Each enum is the single owner of its vocabulary (values() + resolve()), so a token resolves to the same utility on every surface, and unknown tokens fall back to a sensible default instead of emitting an unscannable class.

use NyonCode\WireCore\Foundation\Enums\{Alignment, Breakpoint, ModalWidth, Size};

TextColumn::make('email')->visibleFrom(Breakpoint::Md)->alignment(Alignment::Right);
Action::make('edit')->size(Size::Lg)->modalWidth(ModalWidth::TwoXl);

The Breakpoint, Alignment and Placement enums additionally own the literal Tailwind classes their tokens map to (Breakpoint::Md->tableCellClass(), Alignment::Right->textClass(), Placement::TopEnd->originClass()), so the class map has one owner and Blade consumes a scannable utility instead of interpolating text-{$align}.

Enums

PHP enums cannot be stringified with (string) $enum, yet Eloquent enum casts hand the raw instance to every display and state surface. EnumResolver is the single canonical owner that normalizes such values; downstream packages (table, forms, infolists, exports) delegate to it instead of re-encoding (string) $enum or local match maps.

use NyonCode\WireCore\Foundation\Support\EnumResolver;

EnumResolver::scalar($value);   // backed enum → ->value, unit enum → case name, else passthrough
EnumResolver::label($value);    // getLabel() → label() method → headline(case name); non-enum passthrough
EnumResolver::display($value);  // label() + array/JSON → compact JSON; (string)-safe everywhere
EnumResolver::color($value);    // HasColor → getColor(), else null
EnumResolver::icon($value);     // HasIcon  → getIcon(),  else null
EnumResolver::isEnum($value);   // bool — is this an enum instance?

EnumResolver::isEnumClass($value);       // bool — is this an enum class-string?
EnumResolver::options(Status::class);    // [value => label] map from the enum's cases
EnumResolver::normalizeOptions($value);  // enum class → options() map; arrays pass through

Use scalar() for map keys, comparisons and copy values; display() (or label()) wherever a value is shown. Non-enum values always pass through untouched, so the helpers are safe to call on anything.

options() powers the Filament-style enum-as-options shorthand: any option-based surface — form Select / Radio / CheckboxList (via the shared WireForms\Concerns\HasOptions trait), table SelectColumn and SelectFilter, plus the generic Column::editable() / filterable() / filterAsSelect() — accepts ->options(Status::class) and delegates the expansion here. Each case keys by scalar() and labels through the same canonical label() resolution, so an option reads identically to the matching display cell. A single-value form field whose options come from an enum also gains an automatic in: validation rule (see Forms → Select).

Opt-in enum contracts

An enum used as a cast may implement any of these to drive richer rendering. They live under Foundation\Contracts\Enum\ and are distinct from the builder-facing Foundation\Contracts\HasLabel / HasIcon (which carry fluent setters for components).

use NyonCode\WireCore\Foundation\Colors\Color;
use NyonCode\WireCore\Foundation\Contracts\Enum\HasColor;
use NyonCode\WireCore\Foundation\Contracts\Enum\HasLabel;

enum OrderStatus: string implements HasColor, HasLabel
{
    case Pending = 'pending';
    case Paid = 'paid';

    public function getLabel(): ?string        { return ucfirst($this->value); }
    public function getColor(): string|Color|null
    {
        return $this === self::Paid ? Color::Success : Color::Warning;
    }
}

See Table → Enum & JSON Casts for column-level usage.

Support Utilities

Blade Components

Foundation provides base components under the wire:: namespace:

{{-- Icon --}}
<x-wire::icon name="check" />

{{-- Badge --}}
<x-wire::badge color="success">Active</x-wire::badge>

{{-- Button --}}
<x-wire::button color="primary" size="sm">Save</x-wire::button>

{{-- Dropdown --}}
<x-wire::dropdown>
    <x-slot:trigger>Options</x-slot:trigger>
    <x-wire::dropdown.item>Edit</x-wire::dropdown.item>
    <x-wire::dropdown.item>Delete</x-wire::dropdown.item>
</x-wire::dropdown>

Layout Components

A canonical layout vocabulary lives in NyonCode\WireCore\Foundation\Schema\* and is shared by both forms and infolists (the forms Layout\* classes extend the core versions). Use these in any ->schema([...]) array instead of ad-hoc Blade grids.

use NyonCode\WireCore\Foundation\Schema\{Grid, Section, Flex, Callout};

Section::make('Team')
    ->description('People with access.')
    ->schema([
        // Int reflow, or a Filament-style per-breakpoint map.
        Grid::make()->columns(['default' => 1, 'md' => 2, 'lg' => 3])->schema([...]),
    ]);

// Flex: control distribution, alignment, spacing, wrap and child growth.
Flex::make()->from('md')->justify('between')->align('center')->gap(6)->wrap()->grow(false)->schema([...]);

// Callout — color hues delegate to the canonical alert palette.
Callout::make()->warning()->heading('Heads up')->icon('exclamation-triangle')->dismissible()
    ->content('Something worth noticing.');

Callout is the shared owner of the notice surface; the forms Alert field is its field-style alias. Column counts (Grid, CheckboxList, Section, …) accept an int or a per-breakpoint map keyed by default/sm/md/lg/xl/2xl.

Standalone Blade tags

The same layouts are also exposed as slot-based wire:: tags for plain Blade views (no schema array):

<x-wire::callout color="warning" heading="Storage almost full" icon="exclamation-triangle" dismissible>
    You have used 95% of your quota.
</x-wire::callout>

<x-wire::grid :columns="['default' => 1, 'md' => 2, 'lg' => 3]" gap="gap-3">…</x-wire::grid>

<x-wire::flex from="md" justify="between" align="center" :gap="4">…</x-wire::flex>

<x-wire::section heading="Profile" description="Basic info">…</x-wire::section>
<x-wire::fieldset legend="Billing address">…</x-wire::fieldset>

<x-wire::empty-state icon="outline:inbox" heading="No invoices yet" description="They will show up here.">
    <button>New invoice</button> {{-- slot becomes the action row --}}
</x-wire::empty-state>

{{-- Alpine-driven; client-side state only (no per-step validation) --}}
<x-wire::tabs>
    <x-wire::tab label="Profile">…</x-wire::tab>
    <x-wire::tab label="Security">…</x-wire::tab>
</x-wire::tabs>

<x-wire::wizard>
    <x-wire::step label="Account">…</x-wire::step>
    <x-wire::step label="Confirm">…</x-wire::step>
</x-wire::wizard>

For validated multi-step flows use action-modal wizards (HasModal::steps()) or the form schema Wizard instead — the standalone <x-wire::tabs> / <x-wire::wizard> only switch panels client-side.
